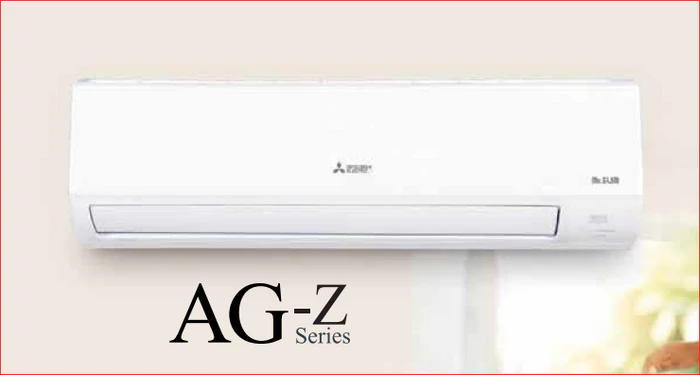

Mitsubishi Electric 1.5 Ton 3 Star Fixed Speed Split Air Conditioner

  • (0 reviews)
6579 off 37907 31328
Capacity:
Energy Class:
Delivery:

Description

❄️ Mitsubishi Electric Split AC – Cooling Only

🔧 Advanced Technology & Features

  • ⚙️ DC Fan Motor: Ensures higher efficiency, lower power consumption, and quieter operation

  • 🔄 Auto Restart: Automatically resumes previous settings after a power outage

  • 🔩 Grooved Piping: Improves heat exchange efficiency for better cooling performance

  • 🛡️ Blue Fin / Hydrophilic Coating: Protects condenser fins from corrosion and enhances durability


🛡️ Warranty Coverage

  • 🧰 Compressor Warranty: 10 Years

  • 💻 PCB Warranty: 5 Years

  • 📜 Comprehensive Warranty: 1 Year


📌 Model Information

  • 🏷️ Model Name: MS-MU-AGZ18VF

  • 🏠 Indoor Unit: MS-AGZ18VF-DA1-KT

  • 🌳 Outdoor Unit: MU-AGZ18VF-DA1-KT

  • ❄️ Operation Type: Cooling Only


Performance Details

  • ❄️ Cooling Capacity: 5050 W

  • 🔌 Power Consumption: 1295 W

  • Rated Current: 5.91 A

  • ISEER: 3.89

  • 🌟 Energy Rating: 3 Star


🔌 Electrical & Indoor Unit Details

  • Voltage: 230 V

  • 🌀 Fin Coating: Blue / Hydrophilic

  • 🌬️ Indoor Airflow (Turbo): 1020 m³/hr

  • 🔇 Indoor Noise Levels (Low/Mid/High/Turbo): 40 / 42 / 44 / 49 dB(A)

  • 📱 Remote Control: LCD Remote with Backlight


📏 Indoor Unit (IDU) Dimensions

  • 📐 Net Dimensions (W×D×H): 1000 × 230 × 295 mm

  • 📦 Packing Dimensions: 1085 × 287 × 352 mm

  • ⚖️ Weight (Net / Gross): 11.0 / 13.0 kg


🌡️ Outdoor Unit (ODU) Details

  • 📐 Net Dimensions (W×D×H): 810 × 301 × 594 mm

  • 📦 Packing Dimensions: 925 × 403 × 635 mm

  • ⚖️ Weight (Net / Gross): 37 / 43 kg

  • 🔇 Outdoor Noise Level: 54 dB(A)

  • ❄️ Refrigerant Type: R32 (930 g)


🔗 Installation & Piping

  • 🔩 Connecting Pipe Diameter (Gas / Liquid): 12.7 mm / 6.35 mm

  • 📏 Maximum Pipe Length: 15 m

  • ⬆️ Maximum Elevation: 10 m

  • 🌡️ Ambient Operating Range: Up to 48°C

  • 🧰 Installation Kit: Included (Copper pipe, insulation & wire)
